V-blocks
Article no. S-1201 - S-1205

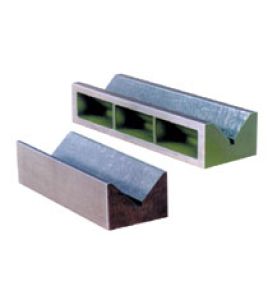

V-Blocks are made in special highly wear resistant cast iron.
The 90° V-block is parallel to the base and manufactured in pairs,
for scribing, adjusting and testing cylindrical parts.
Categorie: Measuring Tools Cast Iron, V-BLOCKS LAPPED IN PAIRS
Grade 0
Supporting surface, prism and outer surfaces fine ground and lapped
Front surfaces machined
Parallelism 0,008 mm
Grade 1
Supporting surface, prism and outer surfaces fine ground and lapped
Front surfaces machined
Parallelism 0,016 mm
Grade 3
Supporting surface, prism and outer surfaces fine milled
Front surfaces machined
Parallelism 0,060 mm
| Article no | Dimensions (mm) | Weight | Receiver for workpiece / mm | ||
|---|---|---|---|---|---|
| L | B | H | |||
| 1201 | 100 | 40 | 30 | 2 | 6-50 |
| 1202 | 150 | 50 | 40 | 4 | 8-60 |
| 1203 | 200 | 70 | 50 | 8 | 8-75 |
| 1204 | 250 | 85 | 60 | 13 | 10-100 |
| 1205 | 300 | 100 | 70 | 18 | 15-120 |
